第 7 章:路由
本章系统梳理了云原生环境下服务发现、注册中心、客户端负载均衡与路由服务的核心原理与实践,帮助开发者理解如何实现高可用、弹性和灵活的服务路由架构。
DiscoveryClient 接口与服务注册中心
在分布式系统中,服务注册中心用于维护服务实例的可用性和位置映射,类似云端的“电话簿”。Spring Cloud 提供了 DiscoveryClient
接口,屏蔽了不同注册中心的实现细节,便于灵活切换。常见实现包括 Cloud Foundry、Consul、Zookeeper、Eureka 等。
// DiscoveryClient 接口核心方法(伪代码)
public interface DiscoveryClient {
String description();
ServiceInstance getLocalServiceInstance();
List<ServiceInstance> getInstances(String serviceId);
List<String> getServices();
}
服务注册中心的设计需权衡 CAP 定理(Consistency, Availability, Partition tolerance),并考虑安全、加密、配置等扩展能力。
Netflix Eureka 服务注册中心
Eureka 是 Netflix 开源的服务注册中心,支持高可用、弹性伸缩。通过 Spring Cloud 集成,可快速搭建 Eureka Server:
@SpringBootApplication
@EnableEurekaServer
public class EurekaServiceApplication {
public static void main(String[] args) {
SpringApplication.run(EurekaServiceApplication.class, args);
}
}
典型配置如下:
server.port=${PORT:8761}
eureka.client.register-with-eureka=false
eureka.client.fetch-registry=false
eureka.server.enable-self-preservation=false
- 端口默认为 8761
- 关闭自注册和自我保护(仅适合开发环境)

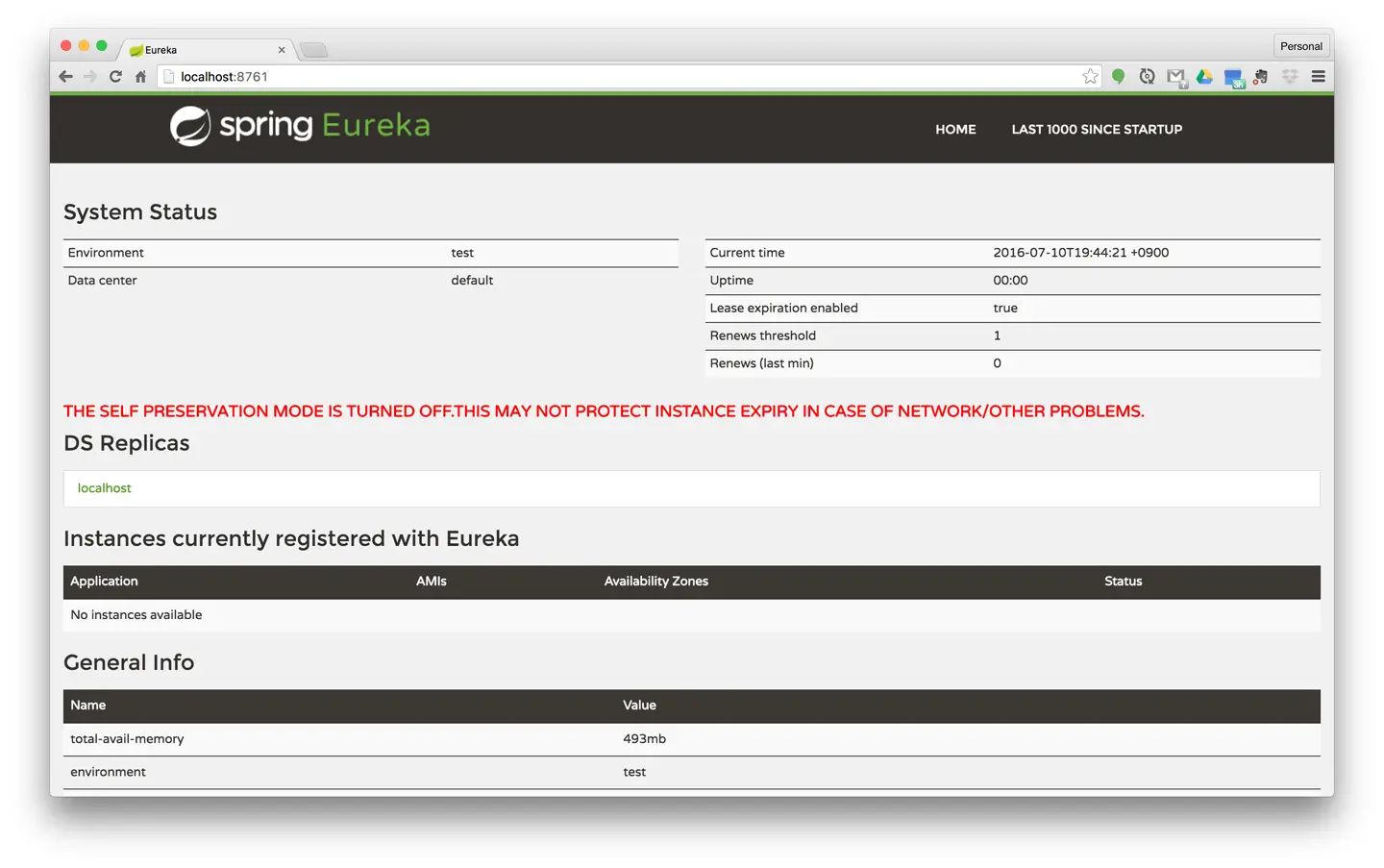

Eureka 控制台可视化展示所有注册实例,便于监控和管理。

服务注册与客户端集成
服务需通过 @EnableDiscoveryClient
注解启用注册能力,并配置唯一的 spring.application.name
。示例:
@SpringBootApplication
@EnableDiscoveryClient
public class GreetingsServiceApplication { ... }
@RestController
class GreetingsRestController {
@GetMapping("/hi/{name}")
public Map<String, String> hi(@PathVariable String name, @RequestHeader(value = "X-CNJ-Name", required = false) Optional<String> cn) {
String resolvedName = cn.orElse(name);
return Collections.singletonMap("greeting", "Hello, " + resolvedName + "!");
}
}
配置示例:
spring.application.name=greetings-service
server.port=${PORT:0}
eureka.instance.instance-id=${spring.application.name}:${spring.application.instance_id:${random.value}}

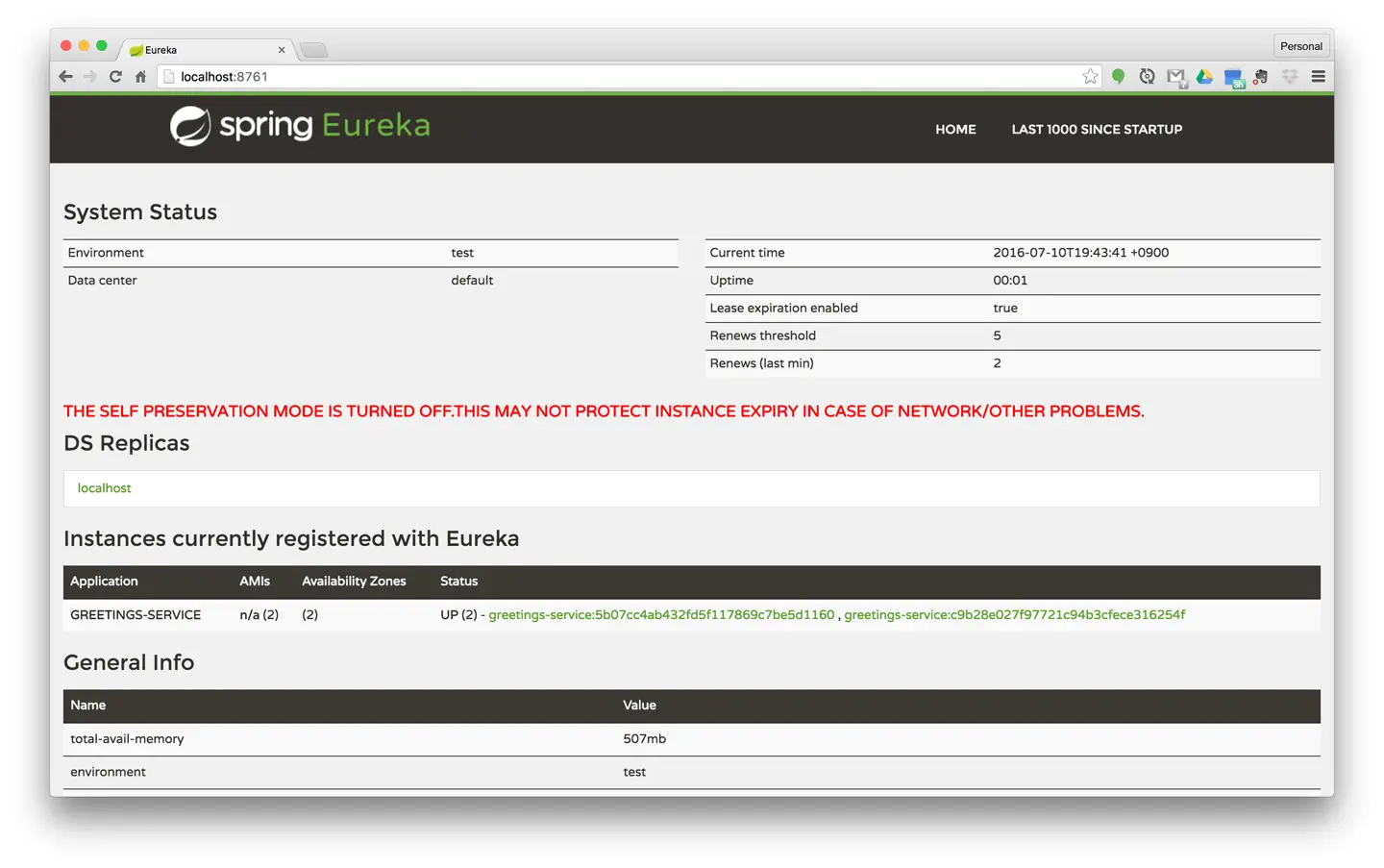

启动多个实例后,Eureka 控制台会显示所有注册节点。

DiscoveryClient 的使用与客户端负载均衡
服务消费者可通过注入 DiscoveryClient
查询服务实例,实现自定义负载均衡策略。例如:
@Component
public class DiscoveryClientCLR implements CommandLineRunner {
@Autowired
private DiscoveryClient discoveryClient;
@Override
public void run(String... args) {
List<ServiceInstance> instances = discoveryClient.getInstances("greetings-service");
// 选择实例并发起请求
}
}
为简化负载均衡,Spring Cloud 集成了 Netflix Ribbon,可通过 @LoadBalanced
注解自动为 RestTemplate
配置客户端负载均衡:
@Configuration
public class LoadBalancedRestTemplateConfiguration {
@Bean
@LoadBalanced
RestTemplate restTemplate() {
return new RestTemplate();
}
}
使用方式:
@Autowired
@LoadBalanced
private RestTemplate restTemplate;
public void callService() {
ResponseEntity<JsonNode> response = restTemplate.getForEntity(
"http://greetings-service/hi/{name}", JsonNode.class, Collections.singletonMap("name", "Cloud Natives!"));
// 处理响应
}
Cloud Foundry 路由服务
对于多语言或第三方客户端,无法直接集成 Ribbon 等负载均衡库时,可通过 Cloud Foundry 路由服务实现中心化路由和请求转发。路由服务本质上是一个 HTTP 代理应用,可对请求进行认证、限流、日志等处理。
典型实现:
@RestController
class Controller {
@Autowired
private RestTemplate restOperations;
@RequestMapping(headers = {"X-CF-Forwarded-Url", "X-CF-Proxy-Metadata", "X-CF-Proxy-Signature"})
public ResponseEntity<?> service(RequestEntity<byte[]> incoming) {
// 解析目标 URL,转发请求,记录日志
return restOperations.exchange(outgoing, byte[].class);
}
}
绑定路由服务示例:
cf create-user-provided-service route-service -r https://my-route-service.cfapps.io
cf bind-route-service cfapps.io route-service -hostname my-downstream-service
通过绑定,所有发往指定主机的请求都会先经过路由服务处理。
路由与服务发现的最佳实践
- 优先使用平台内置的服务注册与发现机制,简化服务间通信。
- 对于内部服务,推荐客户端负载均衡(如 Ribbon + RestTemplate)。
- 对于外部或多语言客户端,推荐中心化路由服务或 API 网关。
- 路由服务可扩展为认证、限流、日志等通用中间件。
总结
本章系统梳理了云原生环境下服务注册中心、DiscoveryClient、客户端负载均衡与路由服务的核心原理与实践。通过合理设计服务发现与路由机制,开发者可实现高可用、弹性和灵活的微服务架构,提升系统的可维护性与扩展性。
